| Specifications | Â |
| Operation system | Embedded linux operation system |
| Display resolution | 1024x600 |

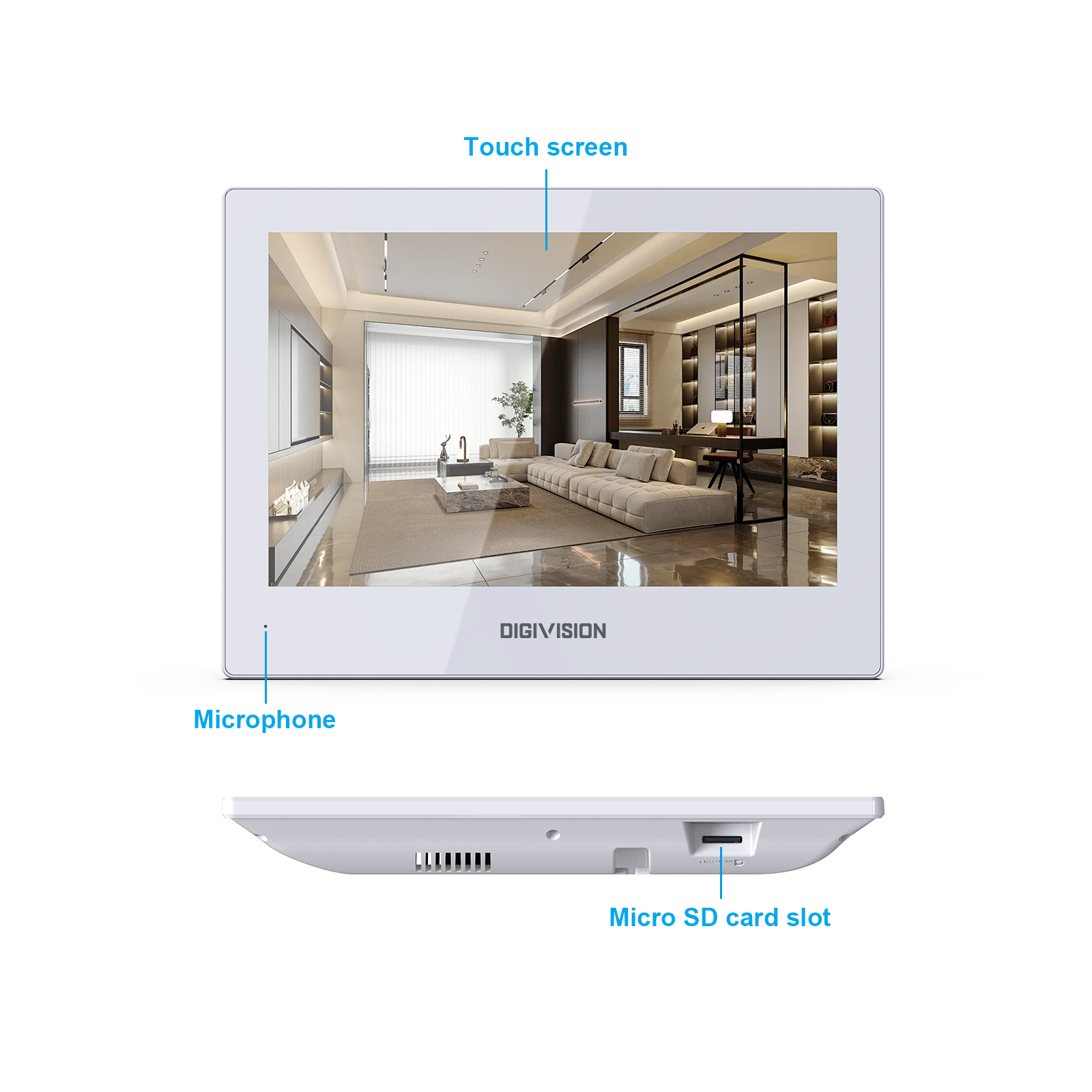

| Operation method | 7" Touch screen |
| Audio intercom mode | Full duplex |
| Monitor connection | 10 |
| Outdoor station connection + CCTV camera connection | 8 |
| Wire network | 10 / 100 Mbps adaptive Ethernet |
| WiFi | 2.4G&5.8G 802.11 a/b/g/n |
| Mobile APP | Tuya Smart (iOS, Android) |
| External memory | Micro SD card, up to 128GB |
| Support pixels | Main stream support Max 5MP 25FPS camera Sub stream support Max 1MP 30FPS camera |
| Video compression standard | H.265 (default), H.264 |
| Network protocol | TCP/IP, RTSP, SIP |
| Internal memory | Support |
| Motion detection | Support |
| Human Detection | Support |
| Video recording | Support via SD Card Not Included |
| 4 split screen recording | Support |
| Customized ringtone | ACC |
| Customized background | Support |
| Power supply | POE IEEE 802.3af / DC15V, 0.8A / AC100-240V 50/60Hz |
| Power consumption | 7W(Max), 3W(Standby) |
| Working temperature | -10°C to +50°C |
| Working humidity | 10%-90% |
| Product size | 215x126x20mm |
