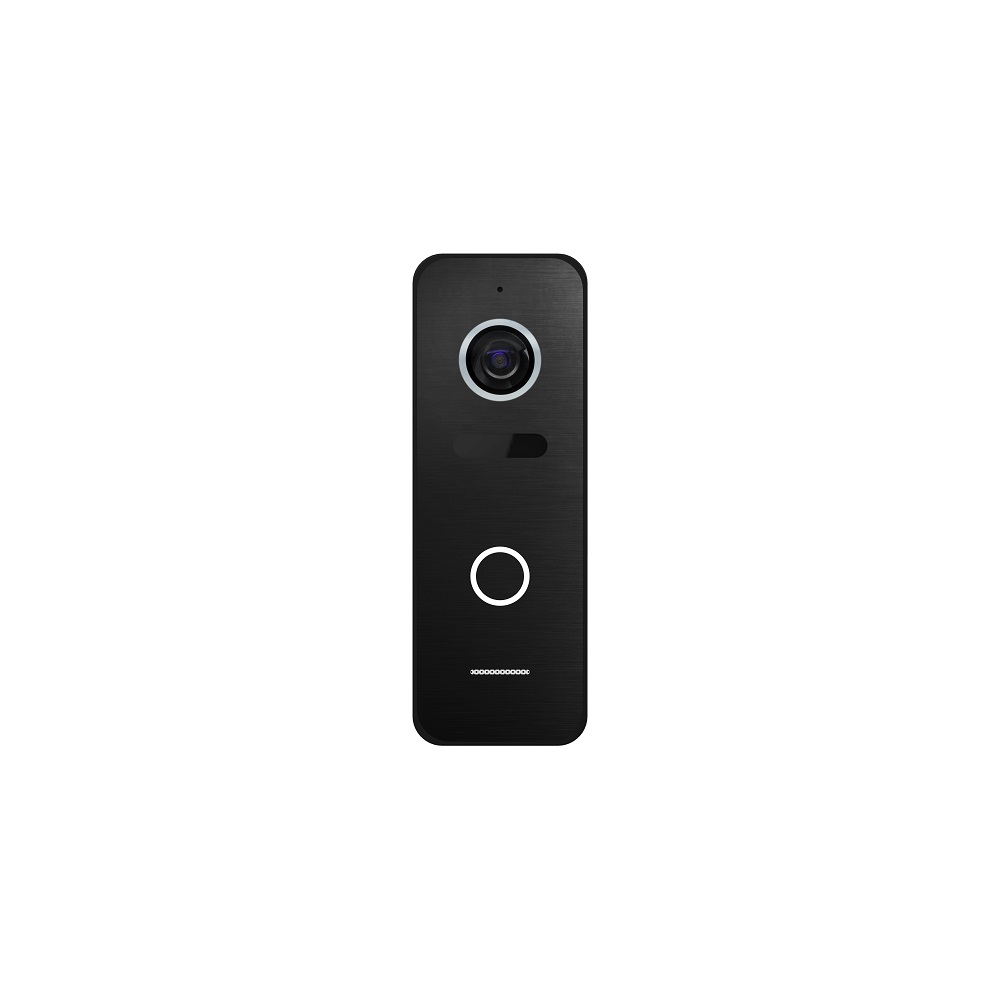

DigiVision IP 2MP Black Outdoor Bell. NOTE* IP Outdoor panel must be used with DIGIVISION IP monitor only. Corner Bracket Included.
Â
|
Operation system |
Embedded linux operation system |
|
Angle of view |
H:120°, V:71° |
|
Video compression standard |
H.265 (default), H.264 |
|
Noise reduction |
3D noise reduction |
|
Supplement light |
IR supplement |
|
Video frame rate |
Main stream: 1920x1080p, 720p, Sub stream: 640x360 |
|
Audio intercom mode |
Full duplex |
|
Wire network |
10 / 100 Mbps Adaptive Ethernet |
|
WiFi |
2.4G&5.8G 802.11 a/b/g/n |
|
Internal storage |
Standard 32GB (Max 128GB optional) |
|
Network protocol |
TCP/IP, RTSP |
|
Gate |
NO (MAX AC/DC30V 100mA) |
|
Lock control |
NO (MAX AC/DC30V 4A) |
|
Ringbell |
NO (MAX AC/DC30V 4A) |
|
Tamper alarm |
Support |
|
Protection grade |
IK09; IP66 |
|
Power supply |
DC15-24V, 0.8A |
|
Power consumption |
≤3W (Standby), ≤4.5W (Working) |
|
Working temperature |
-40°C to +60°C (-22°F to +140°F) |
|
Working humidity |
10%RH– 90%RH (non-condensing) |
|
Housing material |
Zinc alloy |
|
Product size |
131x46x20mm |
