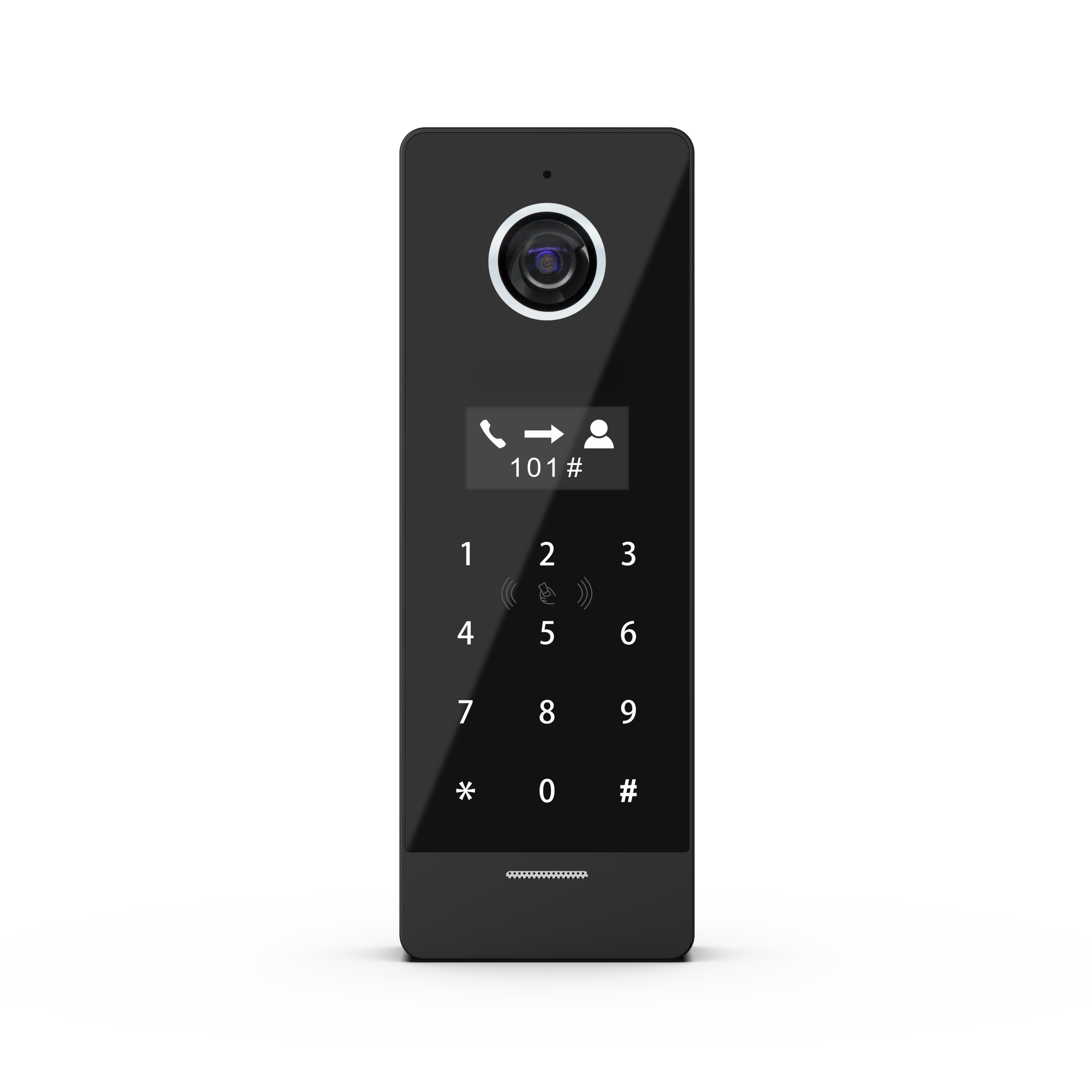

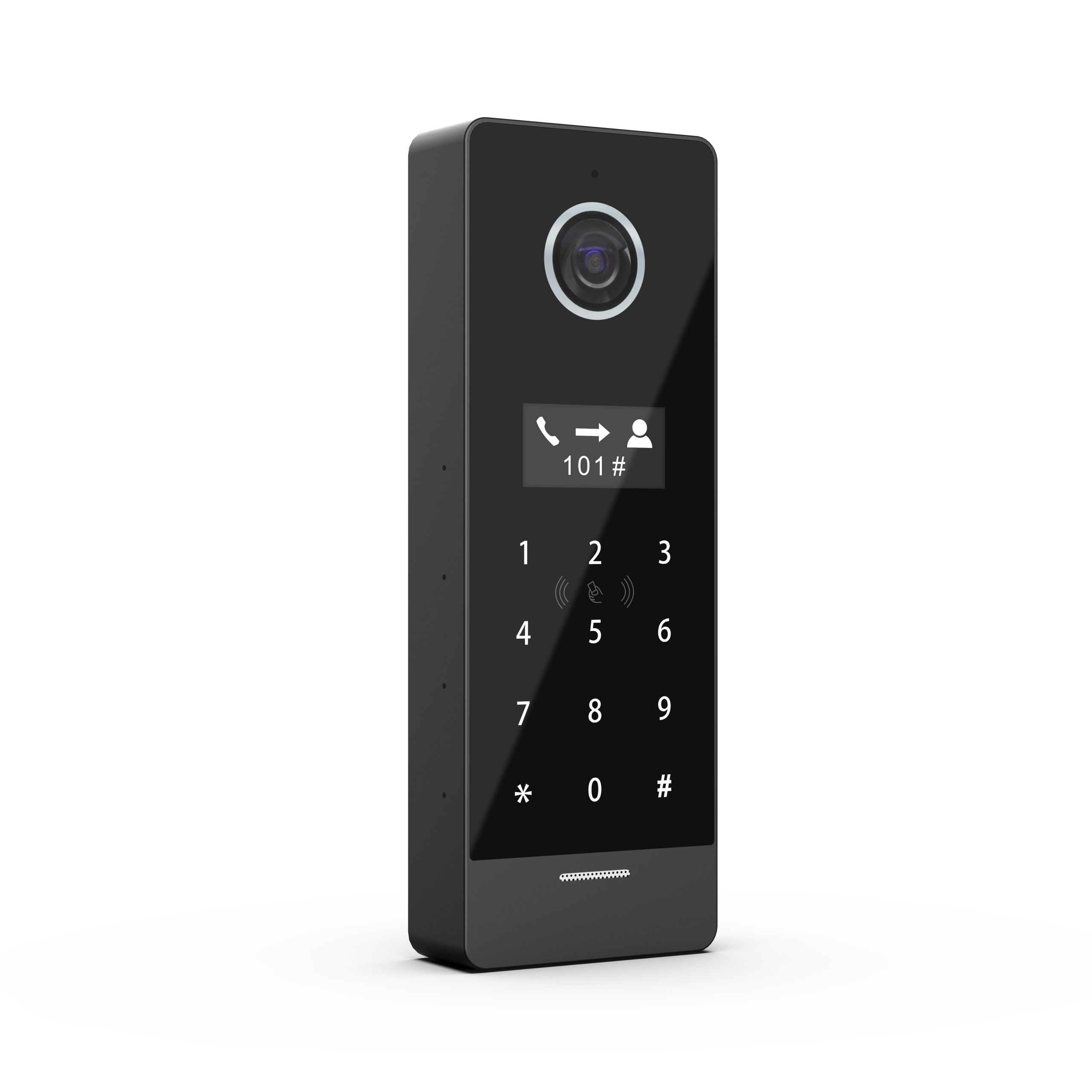

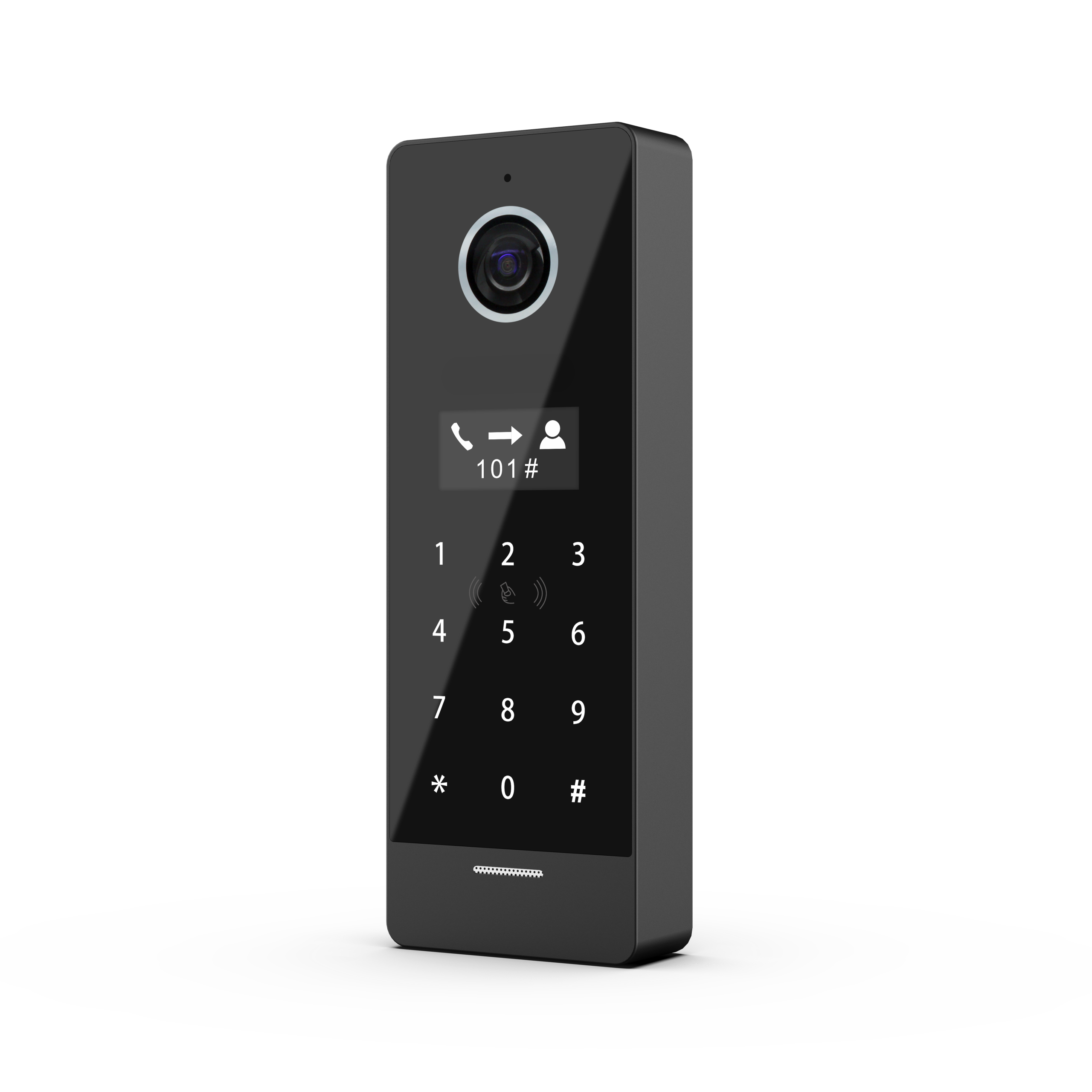

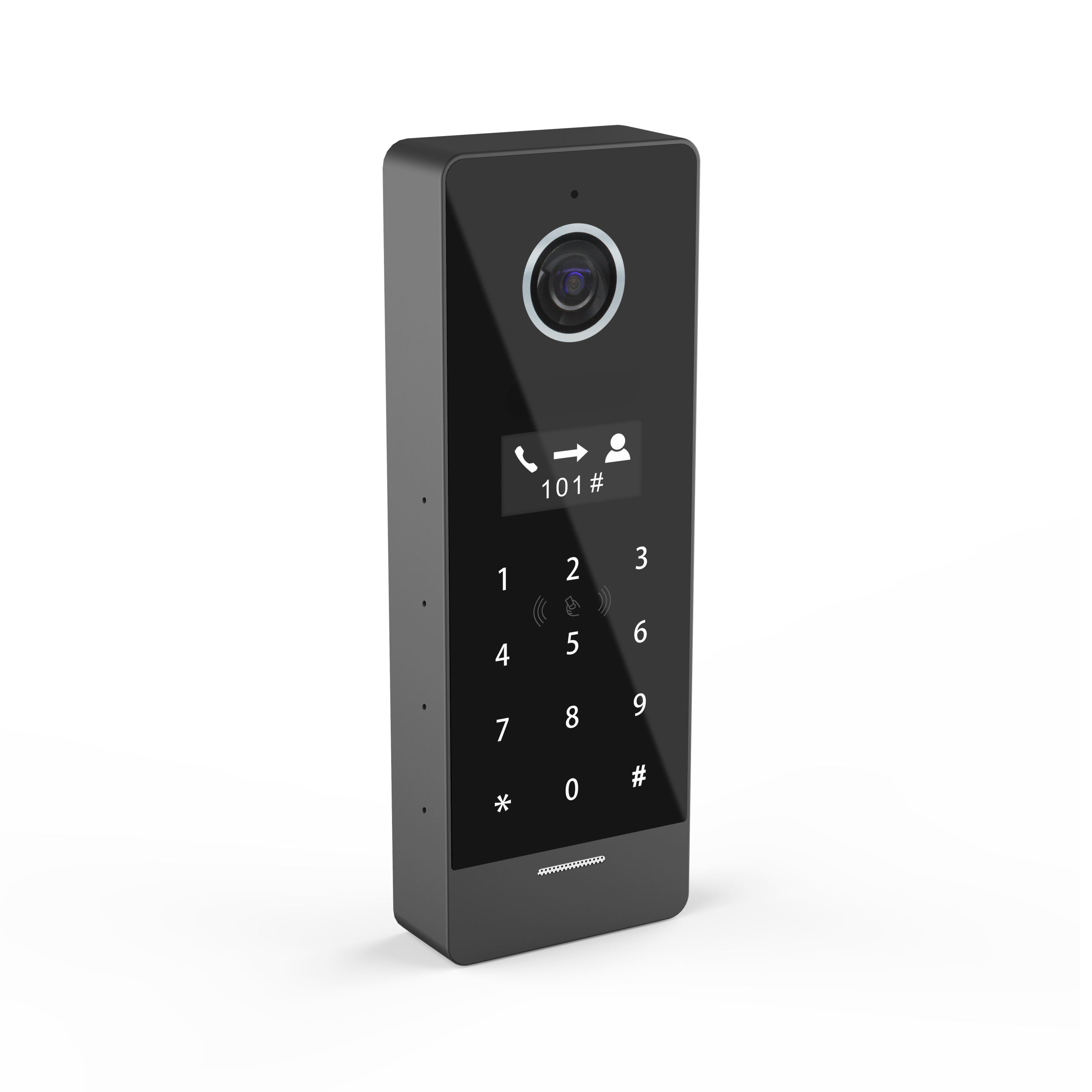

DigiVision IP 2MP Outdoor Bell for up to 20 Apartments. NOTE* IP Outdoor panel must be used with DIGIVISION IP monitor only.
| Specifications | Â |
| Apartments Max. | 20 |
| Operation system | Embedded linux operation system |
| Display resolution | 64x128 |
| Operation method | 1.3" screen |
| Angle of view | H:125°, V:72° |
| Video compression standard | H.265 (default), H.264 |
| Noise reduction | 3D noise reduction |
| Supplement light | IR supplement |
| Video frame rate | Main stream: 1920x1080p, 720p, Sub stream: 640x360 |
| Audio intercom mode | Full duplex |
| Network interface | 10M / 100M adaptive belt POE |
| Network protocol | TCP/IP, RTSP |
| Gate | NO (MAX AC/DC30V 4A) |
| Lock control | NO/NC (MAX AC/DC30V 4A) |
| Exit button | Support |
| Door contact input | Support |
| Tamper alarm | Support |
| RFID | 125KHZ / Em marine / Supports ISO/IEC 18000-2 type |
| Â | Number of cards supported: 100 |
|  | Card reading distance: ≤2cm |
| Protection grade | IK07; IP65 |
| Power supply | POE IEEE 802.3af / DC15V, 0.8A |
| Power consumption | ≤3W (Standby), ≤4.5W (Working) |
| Working temperature | -40°C to +60°C (-22°F to +140°F) |
| Working humidity | 10%RH– 90%RH (non-condensing) |
| Product size | 162x82x29mm |
